Usage Guide

This guide will walk you through a basic example of how to use ViVa-DataCreator.

First, make sure you have the necessary dependencies installed. Then, you can run the application directly from your terminal

Quick Start

Graphical User Interface (GUI)

The primary way to use ViVa-DataCreator is through its intuitive graphical user interface. Start it with:

uv run viva-creator

Automatic Setup

The application will automatically download the required SAM2 checkpoints on first launch if they are not already available. Checkpoints are saved to a checkpoints/ directory that is automatically created at the root of the project.

Example output when starting the GUI for the first time:

$ uv run viva-creator
Using CPython 3.12.3 interpreter at: /usr/bin/python3.12
Creating virtual environment at: .venv
Installed 91 packages in 468ms
Forest-dark theme loaded successfully
Optimized defaults loaded
SAM2 checkpoints not found. Downloading...
Downloading sam2.1_hiera_tiny.pt to Dataset_Creator/checkpoints/sam2.1_hiera_tiny.pt...
sam2.1_hiera_tiny.pt: 149MB [00:17, 9.12MB/s]
Finished downloading sam2.1_hiera_tiny.pt.
Downloading sam2.1_hiera_small.pt to Dataset_Creator/checkpoints/sam2.1_hiera_small.pt...
sam2.1_hiera_small.pt: 176MB [00:20, 8.97MB/s]
Finished downloading sam2.1_hiera_small.pt.
Downloading sam2.1_hiera_base_plus.pt to Dataset_Creator/checkpoints/sam2.1_hiera_base_plus.pt...
sam2.1_hiera_base_plus.pt: 309MB [00:39, 8.18MB/s]
Finished downloading sam2.1_hiera_base_plus.pt.
Downloading sam2.1_hiera_large.pt to Dataset_Creator/checkpoints/sam2.1_hiera_large.pt...
sam2.1_hiera_large.pt: 856MB [01:36, 9.33MB/s]
Finished downloading sam2.1_hiera_large.pt.
Device information: GPU: NVIDIA GeForce RTX 3060 (11.6 GB)

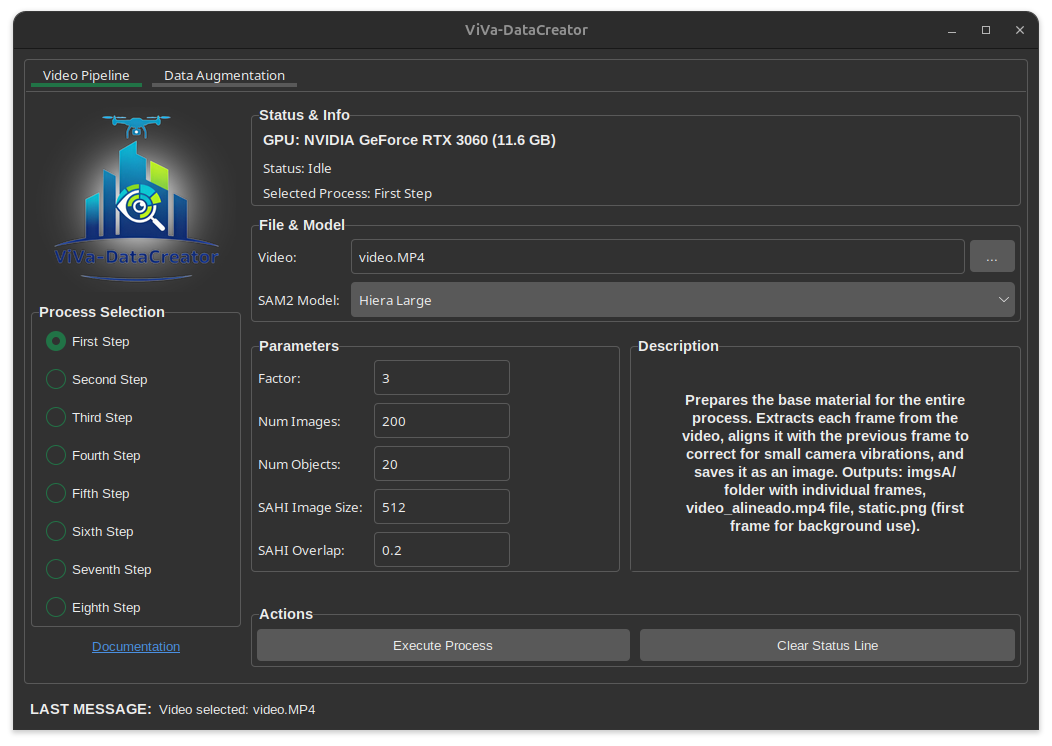

ViVa-DataCreator: Graphical User Interface for Dataset Creation
GUI

The GUI provides:

  • Process Selection Panel: Choose which step of the 8-step pipeline to execute (steps can be revisited or skipped as needed)
  • Configuration Panel: Set all necessary parameters including video selection, SAM2 model configuration, and processing parameters
  • Real-time Monitoring: View progress and status messages as processes run
  • Automatic Configuration Saving: Your settings are saved and restored between sessions

Key GUI Features

  • Video Selection: Browse and select your input video file
  • Model Selection: Choose from available SAM2 models (checkpoints are downloaded automatically)
  • Parameter Configuration:
    • Factor: Image scaling factor for processing efficiency
    • Num Images: Batch size for frame processing
    • Num Objects: Objects to process simultaneously
    • SAHI Settings: Parameters for enhanced small object detection
  • Status Monitoring: Live updates on processing progress and device information

Configuration

The application automatically saves configuration to 'config.yaml', including:

  • Video path
  • SAM2 checkpoint path
  • Model configuration path
  • Processing parameters (factor, num_images, num_objects, etc.)

This configuration is automatically loaded on subsequent runs.

Workflow: Detailed Explanation

The dataset creation process is divided into 8 steps. While they are designed to flow logically, you can skip steps or return to previous ones to refine your results at any time.

Step 1: Frame Extraction

  • Script: first_step.py
  • Purpose: Prepares the base material for the entire process. It extracts each frame from the video, aligns it with the previous frame to correct for small camera vibrations, and saves it as an image.
  • Inputs:
    • The video file selected in the GUI (--root).
  • Outputs:
    • imgsA/ folder: Contains all the frames from the video as individual images (e.g., 00001.jpg, 00002.jpg, etc.).
    • video_alineado.mp4 file: A new video created from the aligned frames. This video will be used in subsequent steps.
    • static.png file: The first frame of the video, saved as a static background image for use in later steps.
Step 1: Left - Original Video, Right - Aligned Video
GUI GUI

Step 2: Initial Interactive Segmentation

  • Script: second_step.py
  • Purpose: In this step, you "teach" the model which objects you are interested in on the first frame of the video. This initial information is crucial for the model to be able to track these objects later.
  • How it works:
    1. A window will open showing the first frame of the video (resized according to the Factor).
    2. Click on the objects you want to segment. You will be prompted to enter 1 (positive click, to add this part to the object) or 0 (negative click, to exclude it).
    3. The SAM2 model will display the segmentation mask it is generating in real-time. You can add more points to refine it.
  • Controls:
    • Mouse Click: Adds a reference point (positive or negative).
    • a key (Add): When you are satisfied with the mask for an object, press a. A menu will open for you to select the object's class (e.g., "car", "person"). After selecting, you can start segmenting a new object.
    • ESC key (Escape): When you have finished segmenting all objects of interest in the frame, press ESC. You will be asked for the class of the last object, and the process will end.
  • Inputs:
    • The first frame from the imgsA/ folder.
    • Your interaction (clicks and class assignments).
  • Outputs:
    • mask_prompts.csv file: A CSV file that saves the information for each object you segmented: the reference points, the labels (positive/negative), and the assigned class.
Step 2: Left - Aligned Video, Right - Clicks and Masks (on cars)
GUI GUI

Step 3: Mask Propagation (Automatic Tracking)

  • Script: third_step.py
  • Purpose: Using the information from mask_prompts.csv, this script processes the video in batches (--n_imgs) and propagates the initial masks through the frames, "tracking" the objects.
  • How it works:
    1. Loads the prompts from mask_prompts.csv.
    2. For the first batch of images, it creates the initial masks.
    3. For subsequent batches, it uses the mask from the last frame of the previous batch as the starting point for the current batch.
    4. Saves each generated mask as an individual image.
  • Inputs:
    • mask_prompts.csv.
    • Images from the imgsA/ folder.
  • Outputs:
    • masks/ folder: Gets filled with thousands of mask images. Each file is named like outmask_fr<FRAME_NUM>_id<OBJECT_ID>_cl<CLASS>.png.
    • segmentation/ folder: Contains images where all masks for a single frame are grouped into one image. The filename is the frame number (e.g., 1.png, 2.png).

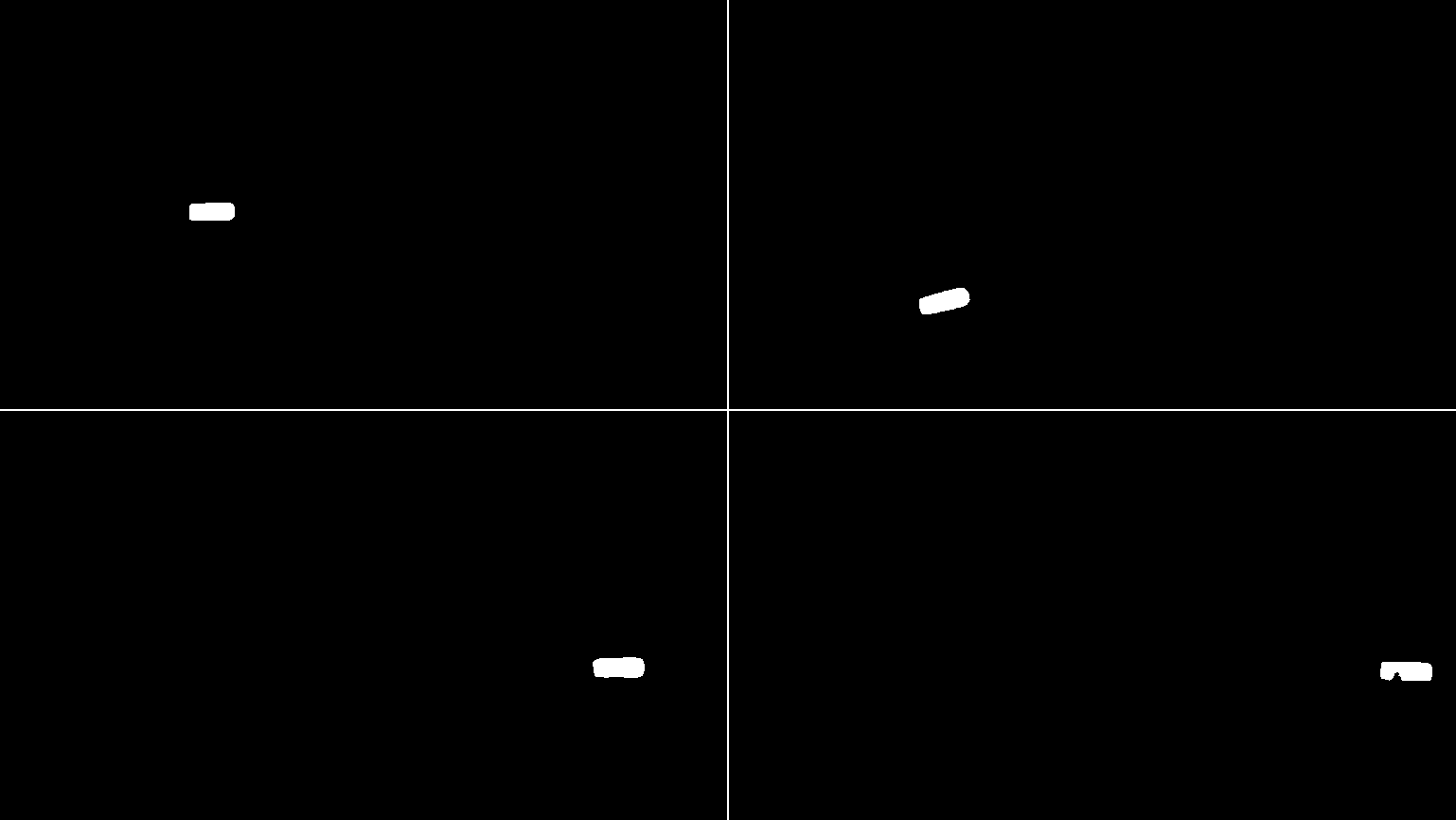

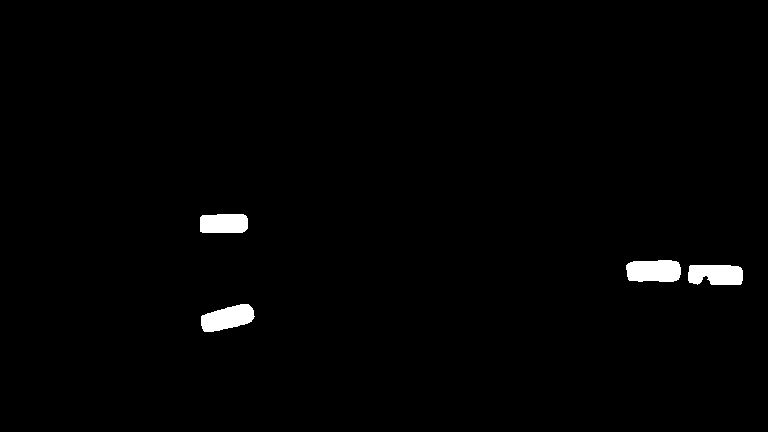

Step 3: Left - Objects Selected, Center - Individual Masks by ID, Right - Combined Individual Masks by Class
GUI GUI GUI

Step 4: Discovering New Objects (YOLO & DeepSort)

  • Script: fourth_step.py
  • Purpose: This step is designed to find objects that appear mid-video and were not originally segmented in Step 2. It uses YOLO for detection and DeepSort for tracking to identify new objects of interest.
  • How it works:
    1. Processes the video_alineado.mp4 frame by frame.
    2. It applies an inverse mask (using existing masks from the segmentation/ folder) to hide areas already segmented. This allows the model to focus only on parts of the video that don't have a mask yet.
    3. Uses SAHI (Slicing Aided Hyper Inference) to improve the detection of small objects with YOLO.
    4. Uses DeepSort to assign a unique tracking ID to each newly detected object.
  • Inputs:
    • video_alineado.mp4.
    • Existing masks from the segmentation/ folder.
  • Outputs:
    • track_dic.csv file: A list of newly detected objects, the frame where they first appeared, and their initial bounding boxes.

Step 5: Interactive Mask Refinement

  • Script: fifth_step.py
  • Purpose: To review the objects detected in Step 4 and create high-quality masks for them using SAM2 interactively. This is useful for adding objects that the tracking in Step 3 might have missed.
  • How it works:
    1. Reads the track_dic.csv file.
    2. For each object in the CSV, it shows you a crop (the bounding box) of the object.
    3. Just like in Step 2, you can use positive and negative clicks to generate a precise mask for that object.
  • Controls:
    • Mouse Click: Adds a reference point.
    • a key (Accept): Finishes adding points, prompts you to assign a class, and saves the mask.
    • 0 key (Skip): Skips the current object without generating a mask.
    • ESC key (Escape): Ends the entire Step 5 process.
  • Inputs:
    • track_dic.csv.
    • Images from the imgsA/ folder.
  • Outputs:
    • traked/ folder: Saves the new, interactively generated masks for the objects discovered in Step 4.
    • mask_list.csv file: A list of all masks generated in this step, with their frame, class, and ID.

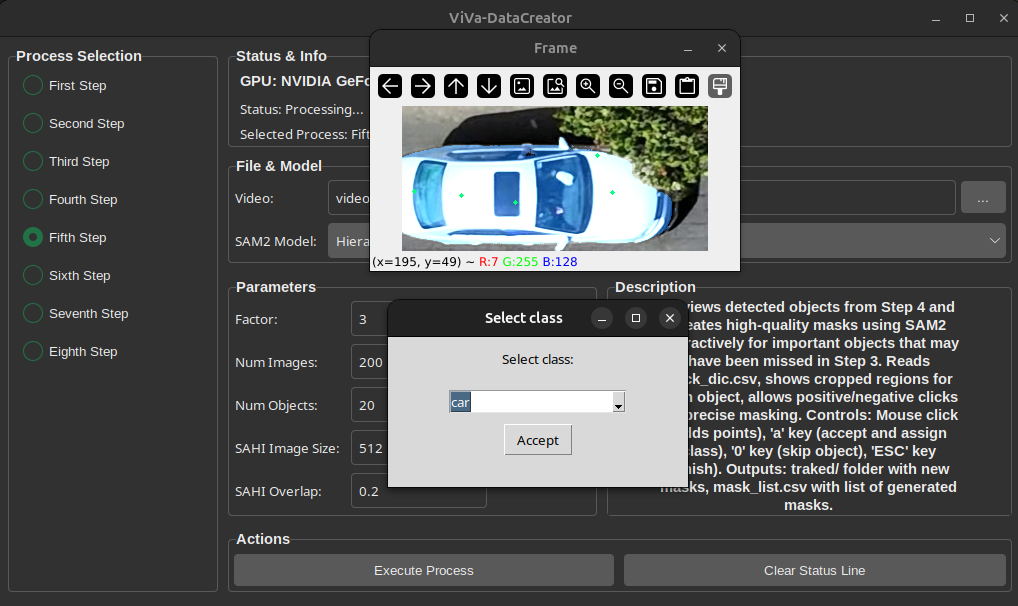

Step 5: Interactive Mask Refinement
GUI

Step 6: Propagation of Refined Masks

  • Script: sixth_step.py
  • Purpose: Similar to Step 3, but this time it uses the refined and additional masks created in Step 5 (mask_list.csv) and propagates them forward and backward through the video to complete the segmentation of those objects.
  • How it works:
    1. For each mask in mask_list.csv, it uses it as a starting point.
    2. It processes the video in batches (--n_imgs) forward from the mask's frame, generating and saving the segmentations.
    3. It then processes the video backward from the same frame to complete the segmentation in the preceding frames.
  • Inputs:
    • mask_list.csv.
    • Images from the imgsA/ folder.
  • Outputs:
    • masks/ folder: Adds and/or overwrites the masks of the refined objects. Crucially, this step performs bidirectional propagation (forward and backward from the discovery frame) to ensure these mid-video objects are segmented throughout their entire presence.

Step 7: Creation of Semantic Color Masks

  • Script: seventh_step.py
  • Purpose: To unify all generated masks into a single image per frame, where each object class has a unique color. This creates a visual representation of the semantic segmentation.
  • How it works:
    1. Reads the class colors from the class_dict.csv file.
    2. For each frame, it combines all corresponding masks from the masks/ folder.
    3. It paints each mask with the color of its class.
  • Inputs:
    • All masks in the masks/ folder.
    • class_dict.csv for the colors.
  • Outputs:
    • semantic/ folder: Contains the semantic segmentation images, one for each frame, with objects colored according to their class.

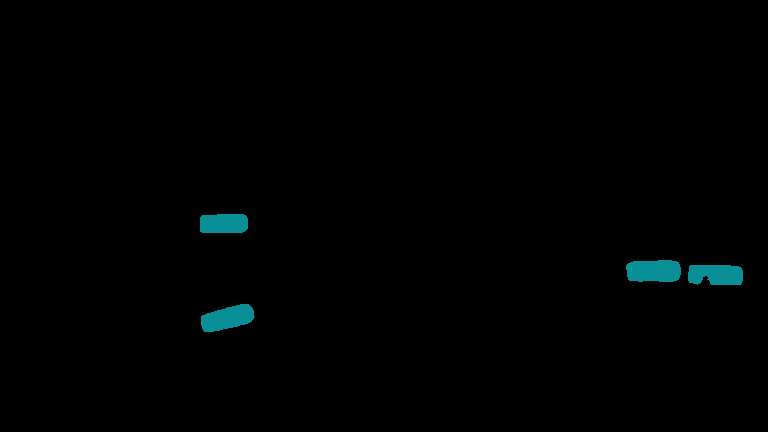

Left - Individual Masks, Right - Combined Masks (cars)
GUI GUI

Step 8: Final Dataset Composition

  • Script: eighth_step.py
  • Purpose: To create the final dataset by combining the original tracked objects with a clean background. This step uses a static background image (static.png) as a base.
  • How it works:
    1. Uses static.png as the background. This image is usually a frame from the stabilized video that has been manually edited to contain only the background (removing any objects of interest).
    2. For each image in the semantic/ folder, it overlays the segmented objects onto this static background.
  • Inputs:
    • Images from the semantic/ folder.
    • A static background image (the first frame of the video).
  • Outputs:1
    • dataset/ folder: The final dataset, with images showing the segmented and colored objects on a realistic background.

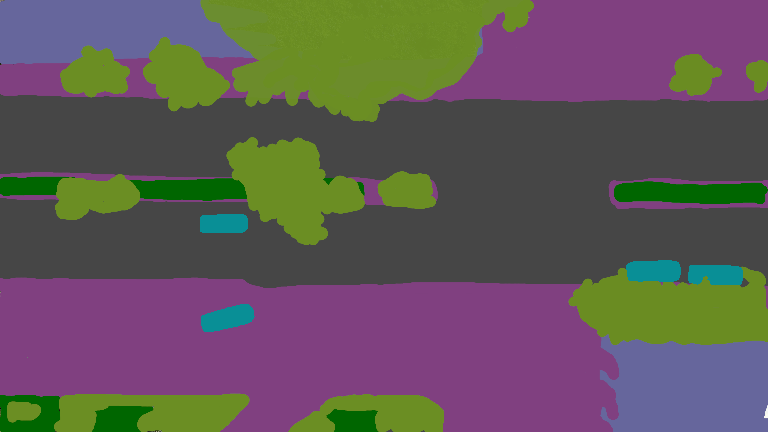

Step 8: Final Dataset Composition
GUI GUI GUI

Data Augmentation

In addition to the 8-step pipeline, ViVa-DataCreator includes a powerful Data Augmentation tool. This tool allows you to significantly increase the size and variability of your dataset by generating new training examples from your processed videos.

It works by taking random crops from your existing pairs of images and masks, rotating them, and resizing them to a target resolution.

Using the Data Augmentation Tab

  1. Switch to the Data Augmentation tab in the GUI.
  2. Root Directory: Select the folder that contains your processed video folders (e.g., if you have videos/video1, videos/video2, select videos/).
    • Note: If you have a video selected in the "Video Pipeline" tab, these paths will be automatically set to that video's parent directory.
  3. Output Directory: Choose where to save the augmented dataset. By default, it creates a dataset_augmented folder.
  4. Parameters: Configure the augmentation settings:
    • Num Images: The total number of new image pairs to generate.
    • Final Width/Height: The resolution of the output images.
    • Min Short Side: Controls how much "zoom" is allowed (smaller values allow tighter crops).
    • Rotation: Set the range of random rotation (e.g., 0-360 degrees).
  5. Generate: Click "Generate Augmented Dataset" to start the process.

Outputs:

A folder containing:

  • The augmented images.
  • The corresponding augmented masks.

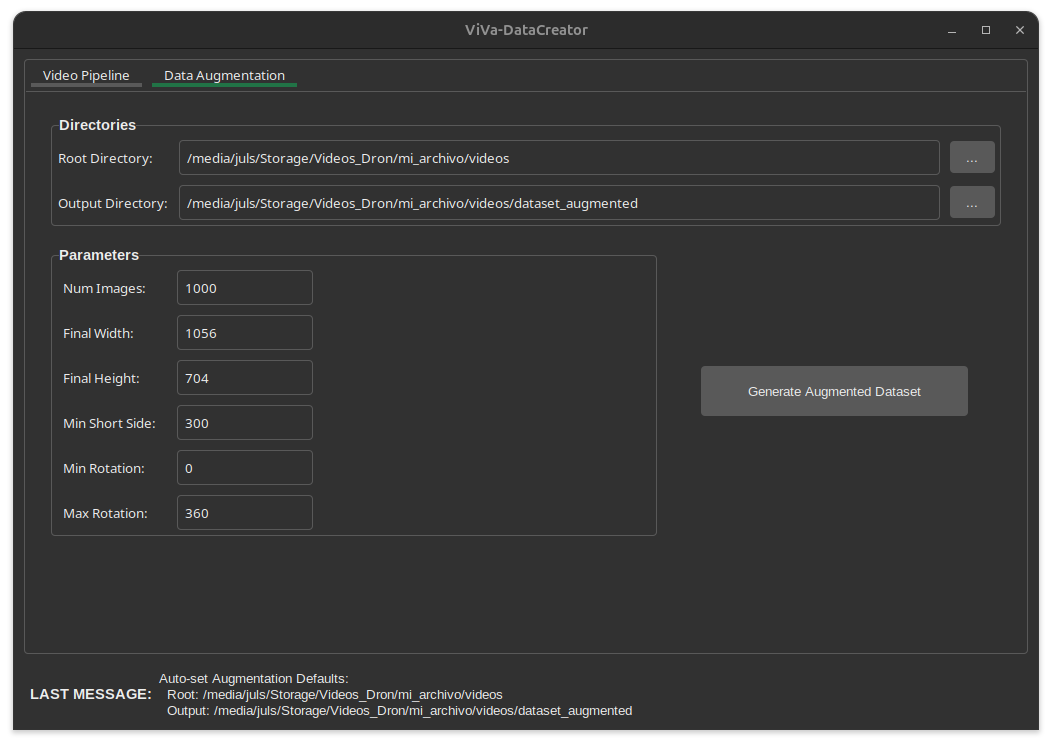

Data Augmentation Tab
GUI
