Usage Guide

This guide will walk you through a basic example of how to use ViVa-SAFELAND.

First, make sure you have the necessary dependencies installed. Then, you can run the simulation directly from your terminal

Quick Start

Graphical User Interface (GUI)

You can start the simulator with this command line:

uv run viva

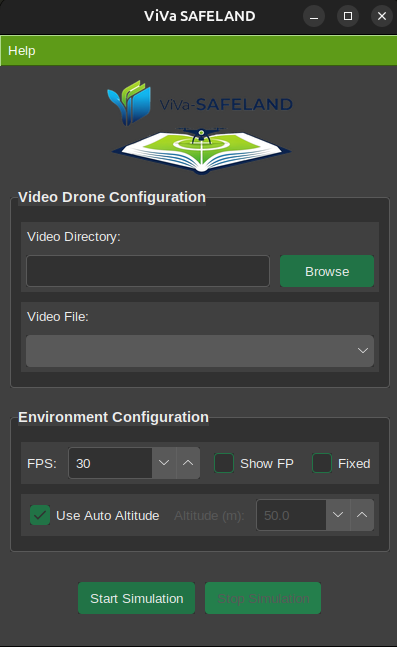

This command will start a GUI where you can configure the simulation parameters:

• Video Drone Configuration:
  • Video Directory: This is the directory where your video files are located.
  • Video File: This is the specific video file you want to use for the simulation.
• Environment Configuration:
  • FPS: This is the frames per second setting for the simulation (default is 30).
  • Show FPS: If set, the FPS will be displayed on the terminal.
  • Fixed: If set, the background will be only the first frame of the video sequence.
  • Use Auto Altitude: If set, the initial altitude will be automatically determined from the video metadata (*.SRT file), default is True.
  • Altitude: If you don't have the .SRT file or you want to specify a different altitude, you can use this option, this option is enabled when Use Auto Altitude is unchecked.
• Simulation Control:
  • Start: Begin the simulation with the configured parameters.
  • Stop: Stop the simulation.

Command Line Interface (CLI)

Alternatively, you can run the simulator specifying the options directly in terminal, this method does not activate the GUI.

uv run viva "/path/to/your/drone_video.mp4"

Options

You can customize the simulation as in the GUI with the options:

• --help: Show info about the usage of viva.
• --render-fps <fps>: Set the frames per second for rendering (default is 30).
• --fixed: If set, the background will be only the first frame of the video sequence.
• --rel-alt-value <initial_altitude>: Set the initial relative altitude of the drone in meters. If not provided, it will be extracted from the video metadata or SRT file.
• --show-fps-flag: If set, the FPS will be displayed on the terminal.
• --no-hover-z: Disable automatic altitude control (Z axis).
• --no-hover-xy: Disable automatic position control (X and Y axes).
• --no-perspective: Disable perspective transformation.

Example with options:

viva "/path/to/your/drone_video.mp4" --render-fps 60 --fixed --rel-alt-value 80 --show-fps-flag

Controls

You can start to move the drone with the keyboard or a joystick if you connect one. The default controls are:

Keyboard ControlsJoystick Controls

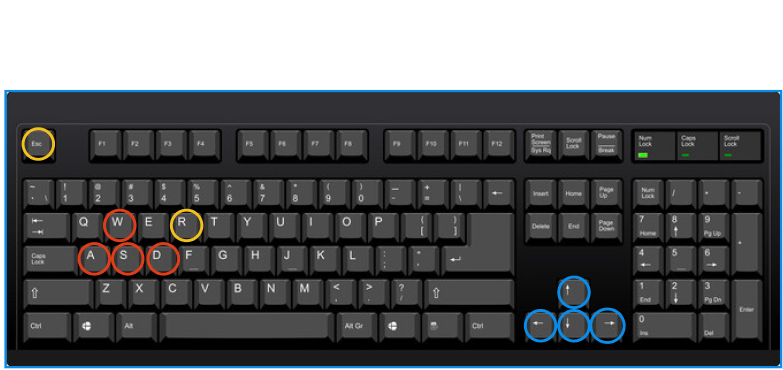

Thrust and orientation

• W/S: Increase/Decrease Thrust
• A/D: Yaw anticlockwise/clockwise

Movement

• Up/Down Arrow: Move Forward/Backward
• Left/Right Arrow: Move Left/Right

Special Actions

• R: Reset drone state
• Esc: Exit from the simulation

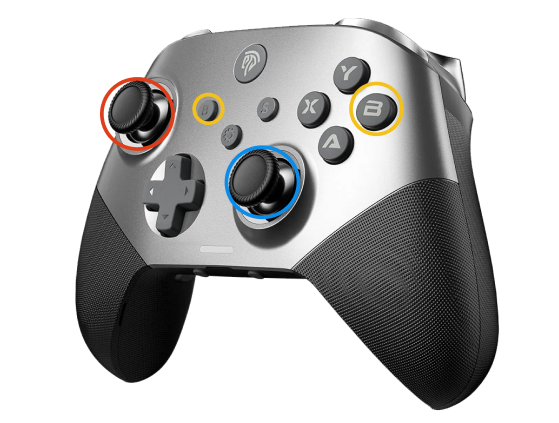

Thrust and orientation

• Left Stick Up/Down: Increase/Decrease Thrust
• Left Stick Left/Right: Yaw anticlockwise/clockwise

Movement

• Right Stick Up/Down: Move Forward/Backward
• Right Stick Left/Right: Move Left/Right

Special Actions

• BACK button: Reset drone state
• B button: Exit from the simulation

Note

The controls of the joystick are universally mapped, so the positions of the sticks and buttons are the same for all joysticks.

Application Usage

If you want to use viva to develop your own application, you can use the DroneEnv class from the viva package. Below is a minimal example of how to use it:

render_mode=humanrender_mode=rgb_array

from viva import DroneEnv

# Create an instance of the simulator environment
env = DroneEnv(
    render_mode="human",
    video="<path_to_your_video_file>.MP4",
)

# Initialize the environment with a random drone pose
obs, info = env.reset()
terminated = False

# Main loop to run the simulation
while not terminated:
    action = [0.0, 0.0, 0.0, 0.0]               # Example: no action
    obs, terminated, info = env.step(action)

from viva import DroneEnv
import cv2

# Create an instance of the simulator environment
env = DroneEnv(
    render_mode="rgb_array",
    video="<path_to_your_video_file>.MP4",
)

# Initialize the environment with a random drone pose
obs, info = env.reset()
terminated = False

# Main loop to run the simulation
while not terminated:
    action = [0.0, 0.0, 0.0, 0.0]               # Example: no action
    obs, terminated, info = env.step(action)
    img = env.render()                          # Get the RGB array
    cv2.imshow("environment", img)              # Display the image
    if cv2.waitKey(1) == 27:                    # Exit on 'ESC' key
        break
cv2.destroyAllWindows()

Useful information

obs is a RGB array representing the current drone view and one of the most important outputs of the environment, you can treat it as an image and apply your computer vision algorithms on it.

The full documentation of the DroneEnv class can be found in the API reference.

Example with Controller

To add a controller to the drone you can import the HMI class from the viva package and use it to control the drone with a keyboard or joystick. Below is an example of how to integrate the controller:

    from viva import DroneEnv
    from viva import HMI

    # Create an instance of the simulator environment
    env = DroneEnv(
        render_mode="human",
        video="<path_to_your_video_file>.MP4",
    )

    # Create an instance of the HMI controller
    hmi = HMI()

    # Initialize the environment with a random drone pose
    obs, info = env.reset()
    terminated = False

    # Main loop to run the simulation
    while not terminated:
        action, reset, terminated_command = hmi()
        obs, terminated, info = env.step(action)
        terminated = terminated or terminated_command
        if reset:
            obs, info = env.reset()
    hmi.quit()

For full documentation of the HMI class, see the API reference.

Example with Motion Blur

You can also apply post-processing effects to the drone's view. One such effect is Motion Blur, which simulates the blur caused by the drone's movement and shutter speed. This is useful for creating more realistic visual datasets for training.

from viva import DroneEnv
from viva import HMI
from viva.modules.motion_blur import MotionBlur
import cv2

# Create an instance of the simulator environment
env = DroneEnv(
    render_mode="rgb_array",
    video="<path_to_your_video_file>.MP4",
)

hmi = HMI()
# Create an instance of the MotionBlur engine
blur_engine = MotionBlur(shutter_factor=0.5)

obs, info = env.reset()
terminated = False

while not terminated:
    action, reset, terminated_command = hmi()
    obs, terminated, info = env.step(action)

    # Apply motion blur to the observation
    # It requires the current observation, info dictionary, and FPS
    blurred_obs = blur_engine.apply(obs, info, fps=env.render_fps)

    cv2.imshow("Motion Blur View", blurred_obs)
    if cv2.waitKey(1) == 27 or terminated_command:
        break
    if reset:
        obs, info = env.reset()

hmi.quit()
cv2.destroyAllWindows()

Adding Custom Effects

ViVa-SAFELAND is designed to be extensible. If you need to simulate other conditions, such as different lighting, weather effects, or camera distortions, you can easily do so by creating a custom class and applying it to the obs array returned by the environment.

The obs output is a standard NumPy array (RGB), making it compatible with libraries like OpenCV, PIL, or any deep learning framework.

Example: Simulating Low Light

If you want to simulate different times of the day or low-light conditions, you can implement a simple class to adjust the brightness:

import numpy as np

class LightingEffect:
    def __init__(self, brightness=0.5):
        self.brightness = brightness # 1.0 is original, < 1.0 is darker

    def apply(self, obs):
        # Simply scale the pixel values
        return (obs * self.brightness).astype(np.uint8)

# Usage in the simulation loop:
# effect = LightingEffect(brightness=0.3)
# darkened_obs = effect.apply(obs)

This modular approach allows you to stack multiple effects (e.g., Motion Blur + Low Light) to create complex and specialized datasets for your drone's vision system.
